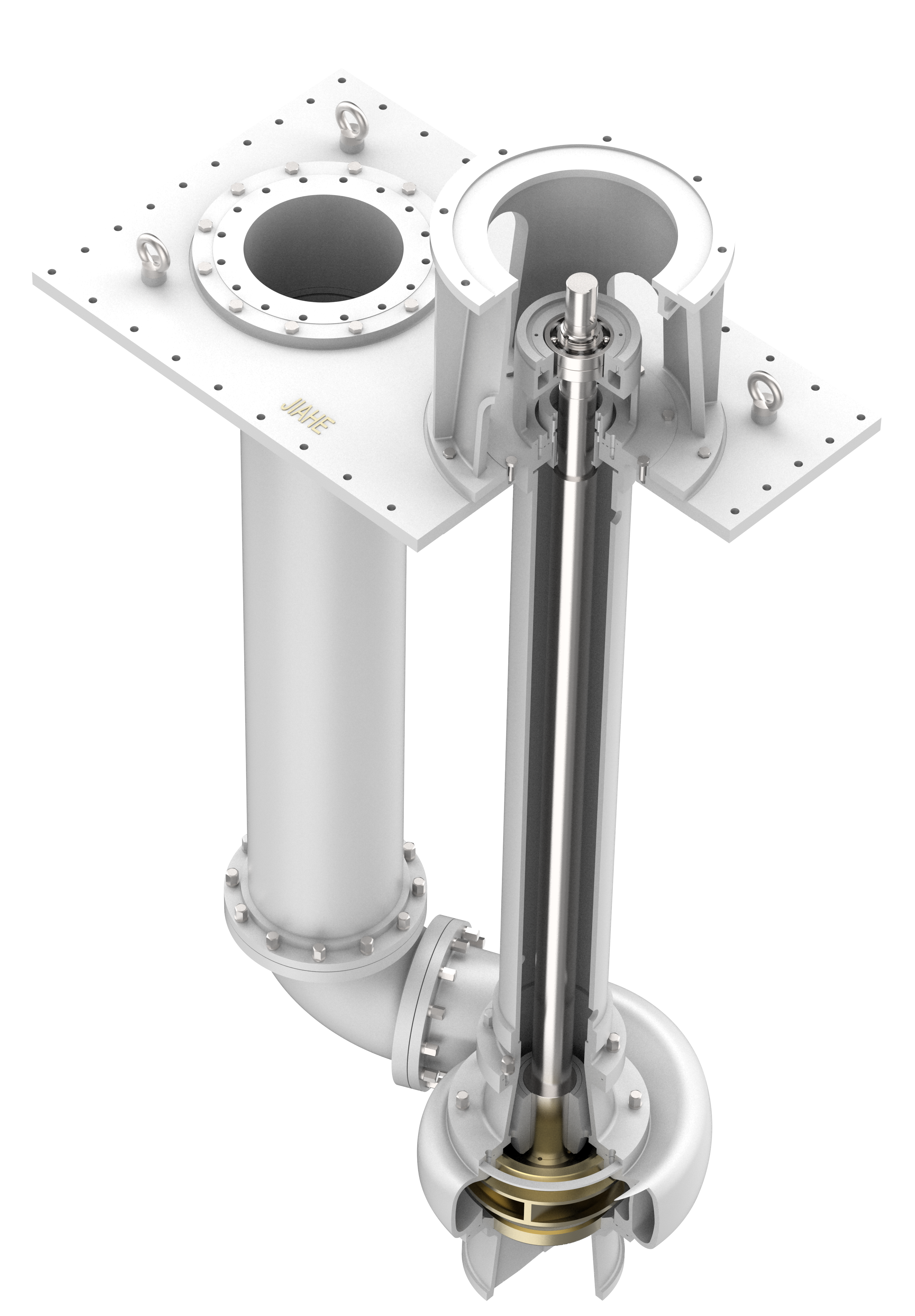

JHG series pumps are single stage, single suction, axial suction radial split submerged centrifugal pumps that comply with ISO13709/API610-11th standards. This series of pumps can reach a depth of 3.6 meters underwater and adopt a dual support structure. Two rows of angular contact ball bearings are used above the liquid to withstand axial loads. One or two pairs of sliding bearings (i.e. shaft sleeves and bushings) are installed below the liquid to withstand radial loads. The flow passage components are made of high-quality high-temperature stainless steel material that is resistant to sulfuric acid corrosion.

Application scope:

It is suitable for transferring concentrated sulfuric acid with temperature ≤220℃ and concentration 98.6%~100%.
