Petrochemical Industrial Coal Chemical Industrial Sulphur & Phosphorous Chemical Industrial Nonferrous Metallurgy

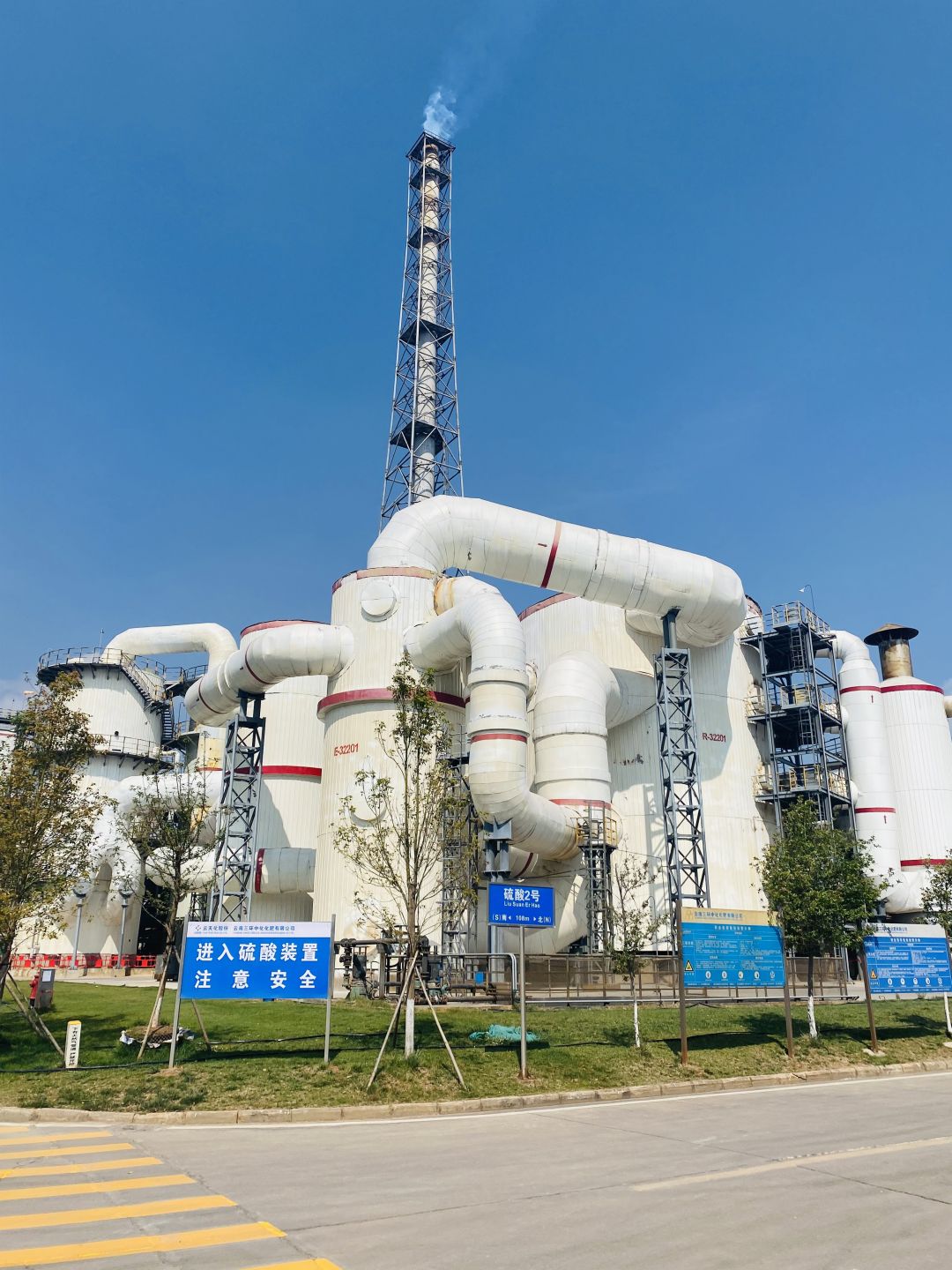

Sulphur & Phosphorous Chemical Industrial

The equipment is suitable for acidic and alkaline media, with high temperature, strong corrosiveness, strong abrasion resistance, and high flow rate requirements.

Sulfur and phosphorus chemical industry refers to the use of sulfur and phosphorus elements for chemical reactions to prepare compounds or chemical products. These compounds contain sulfur and phosphorus elements, which have certain toxicity. Explosion of sulfur and phosphorus chemical plants can release toxic gases such as sulfur dioxide.

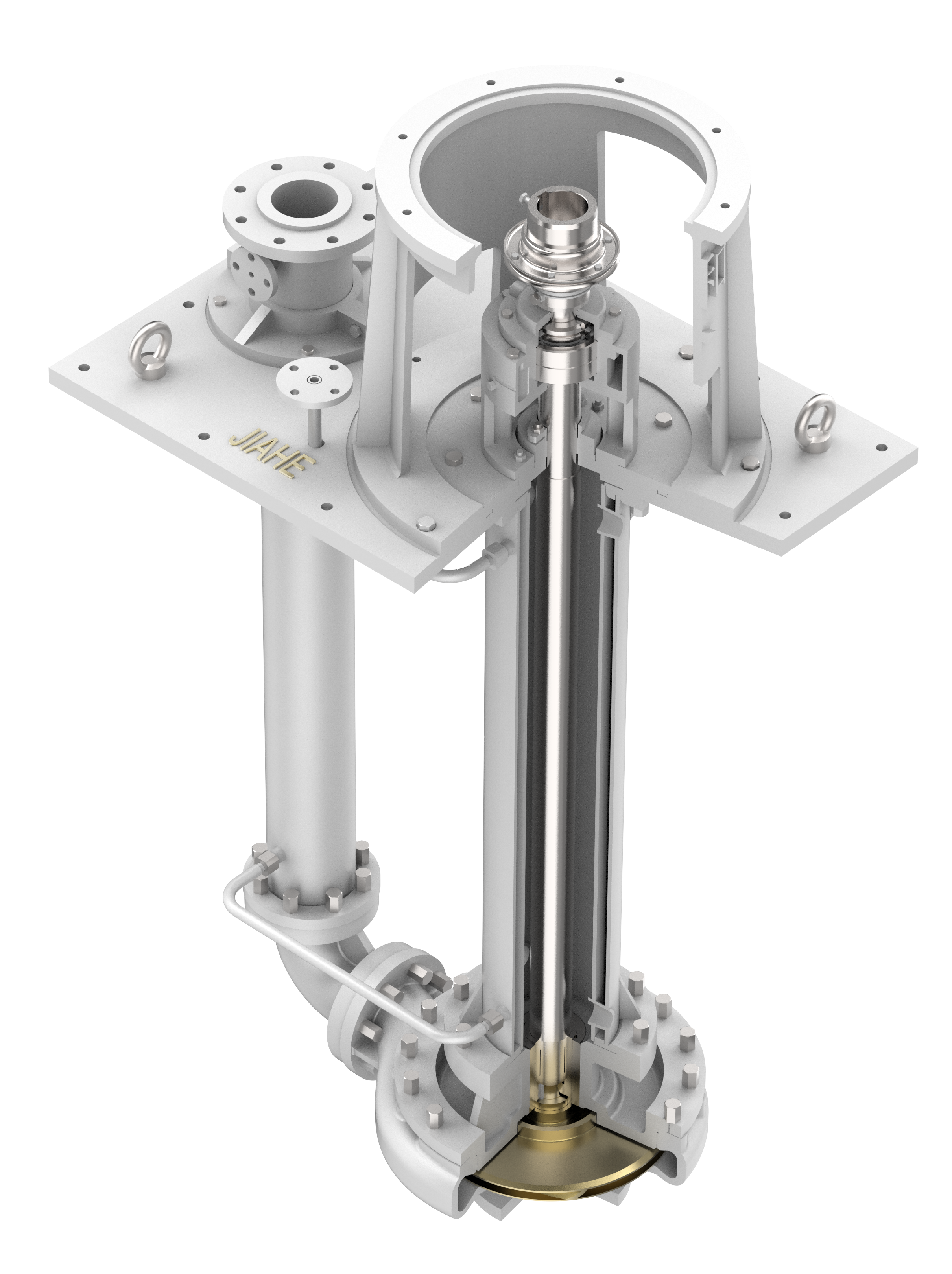

VS5-JLF/JLZ
VERTICAL CORROSION RESISTANT SLURRY PUMP
JLF/JLZ series pumps are vertical, single-stage, single-suction cantilever submerged centrifugal pumps, which conform to GB/T 5656/ISO 5199 standard. The pump is designed according to the solid-liquid two-phase flow theory, with high efficiency and energy saving, anti-abrasion and corrosion resistan...
View Details
VS6-JHDL
VERTICAL MULTISTAGE DOUBLE SHELL BARREL PUMP
JHDL serie is a vertical, multi-stage, radial split, segmented, and double shell barrel pump. Complies with API610-11th standard. The dimensions of the inlet and outlet flanges meet ANSI or ISO standards. The design of the sealing chamber complies with the ISO21049/API682 sealing standard, and the...
View Details

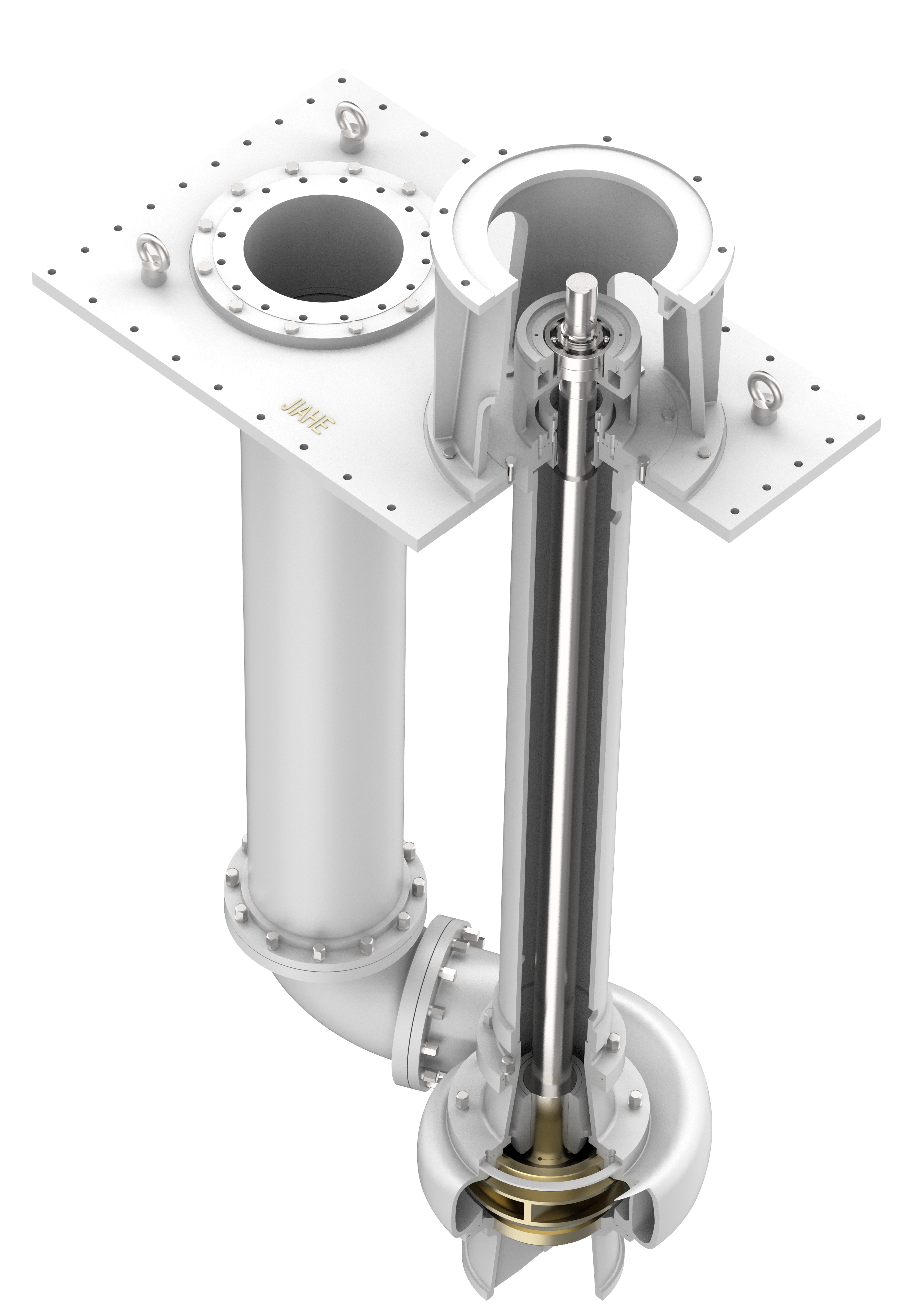

VS5-JHXL
HIGH TEMPERATURE SULFUR SUBMERGED PUMP
JHXL serie is single-stage, single-suction submerged centrifugal pump, which conforms to ISO13709/API610 standard. There is no sliding bearing under the liquid, the impeller adopts semi-open design, with strong passing capacity, the liquid contacting receiver parts and liquid discharge pipe parts ad...
View Details

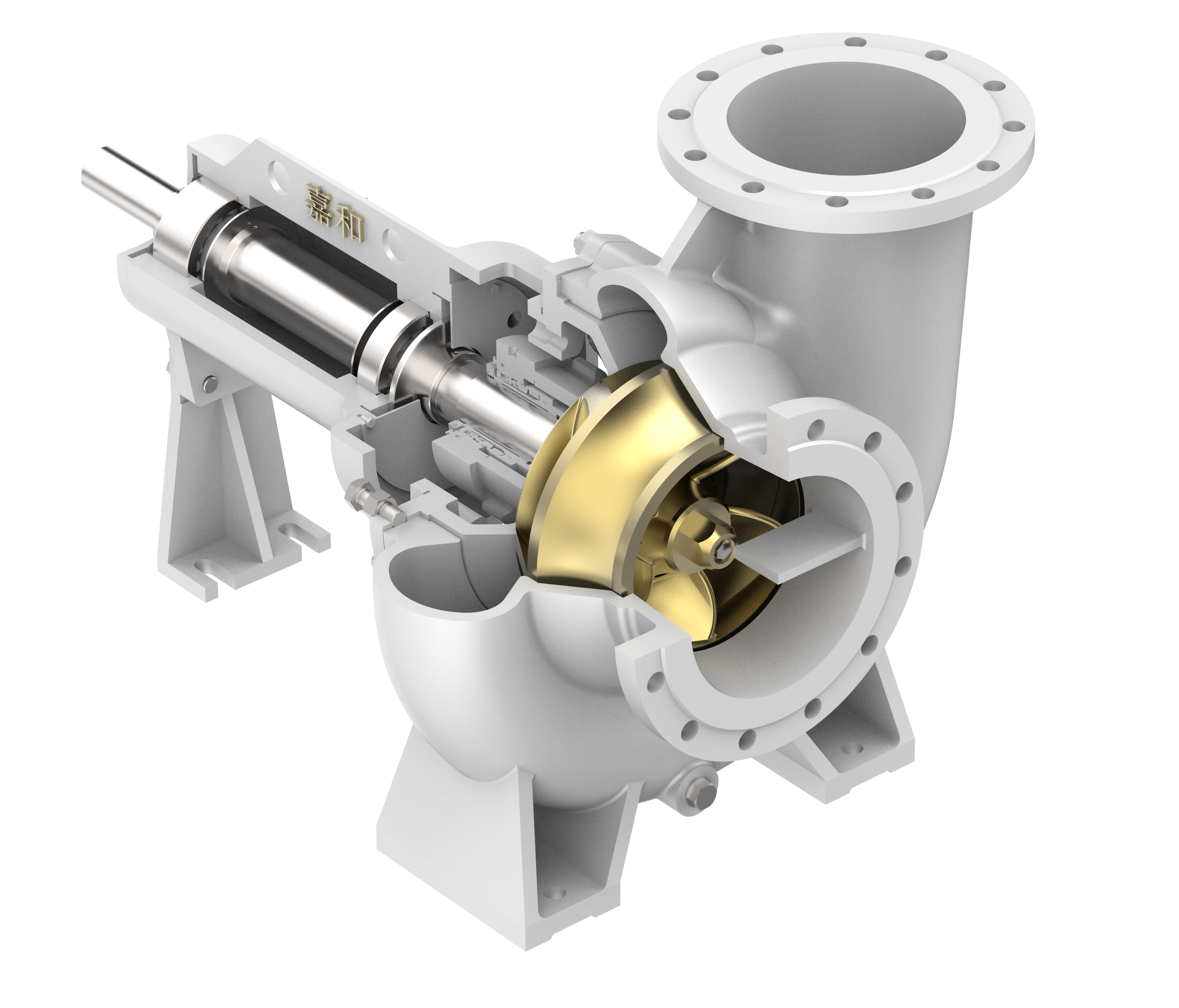

OH1/OH2-JFZ(F)/JFZ(C)
FLUE GAS DESULFURIZATION CIRCULATING PUMP
JFZ (F)/JFZ (C) series are horizontal, single-stage, single suction, radial split, foot support/center support, and cantilever centrifugal pumps that comply with API610-10th standard OH1/OH2 pump types. Based on the two-phase flow theory and practical experience of the petrochemical plant in corrosi...
View Details
VS4-JHB
HIGH TEMPERATURE CONCENTRATED SULFURIC ACID SUBMERGED PUMP
JHB serie pump is single-stage, single-suction, axial suction radially dissected submerged centrifugal pump, which conforms to API610-11th standard. This serie of pump can reach 3.6m depth under liquid. It adopts double support structure, with two rows of angular contact ball bearings on liquid to b...
View Details
VS4-JHG
ULTRA HIGH TEMPERATURE CON- CENTRATED SULFURIC ACID SUBMERGED PUMP
JHG serie pump is single-stage, single-suction, axial suction radially dissected submerged centrifugal pump, which conforms to ISO13709/API610-11th standard. This serie of pump can reach 3.6m depth under liquid, with double support structure, two rows of angular contact ball bearings on liquid to be...
View Details

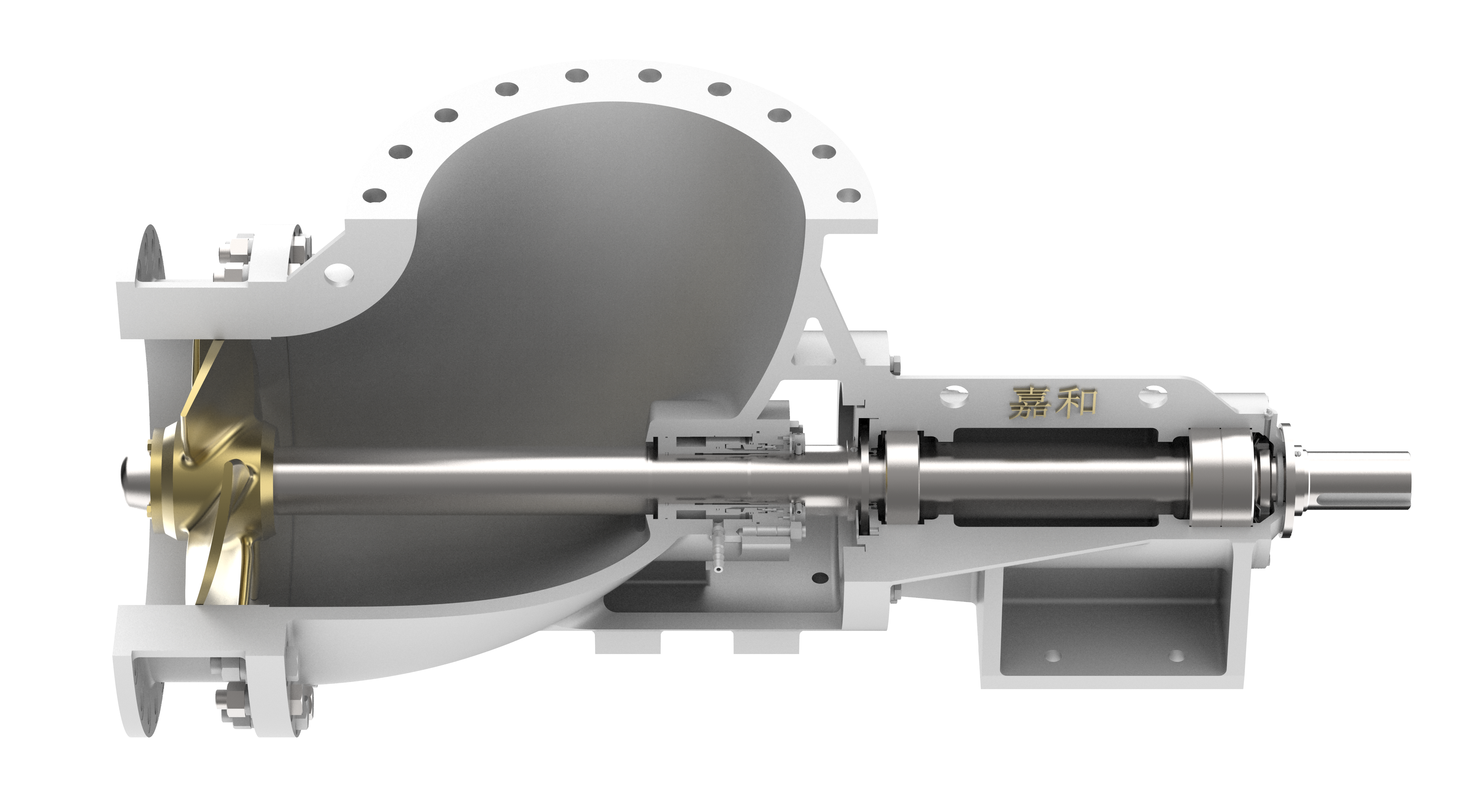

JHZ/VS3-JLHZ
Chemical Axial Flow Pump
JHZ/JLHZ series chemical axial flow pumps are designed according to solid-liquid two-phase flow theory and conform to GB/T13008 standard.JHZ series are horizontal, front-opening, single-stage, single-suction cantilever structure, which can be maintained without dismantling the pump body and pipeline...
View Details
OH1-JW
CHEMICAL MIXED FLOW PUMP
JW serie chemical mixed-flow pump is single-stage, single-suction, radially dissected, cantilever centrifugal pump. It conforms to GB/T13008 standard. Designed according to the solid-liquid two-phase flow theory, the hydraulic design of this pumps take into full consideration of transferring slurry ...
View Details

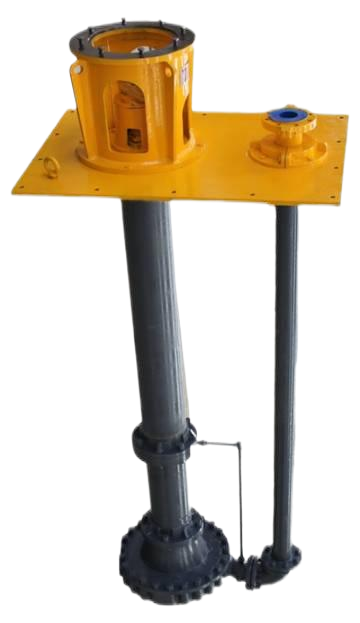

VS4-JHY
CHEMICAL SUBMERGED PUMP
JHY pump is a single-stage, single-suction, corrosion-resistant, radially dissected, vertical long-shaft submerged centrifugal pump.The submerged depth can reach 6m. It is designed according to ISO2858 standard and partially meets the requirements of API610-10th standard.Application field:Suitable f...
View Details
VS4-JHL
HIGH TEMPERATURE SULFUR SUBMERGED PUMP
JHL serie pump is single-stage, single-suction submerged centrifugal pump, which conforms to ISO13709/API610 standard. It adopts double support structure, steam jacket design for liquid contacting tube parts and liquid discharge tube parts, and high quality high temperature corrosion resistant mater...
View Details

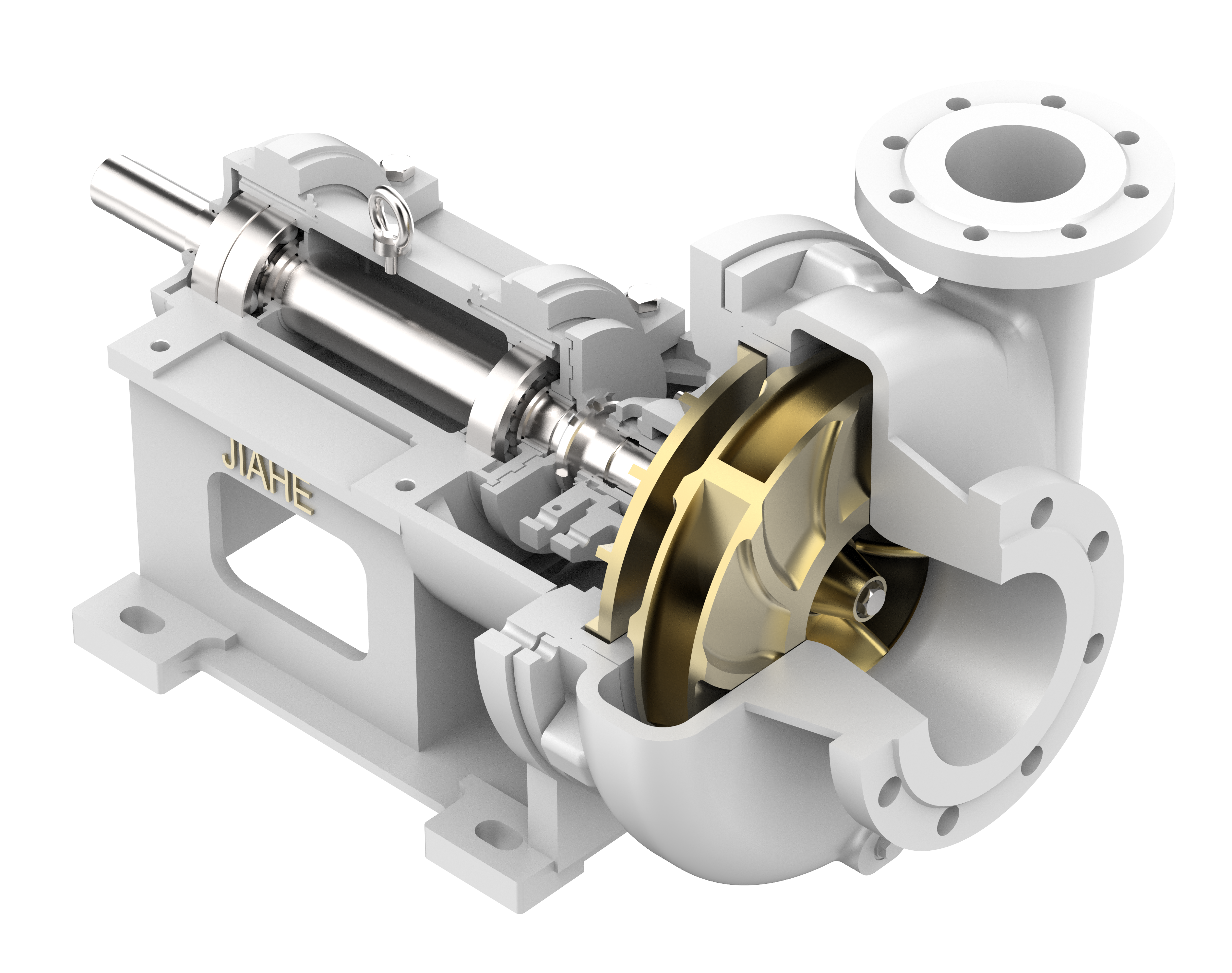

JFZ/JFZ(T)
CORROSION AND ABRASION RESISTANT PUMPS
Product Introduction:JFZ/JFZ(T) series are horizontal, single-stage, single-suction, radially dissected cantilever centrifugal pumps. It is designed according to two-phase flow theory and practical experience, and conforms to GB/T 5656/ISO 5199 standard.Application scope:Suitable for the concentrati...
View Details
