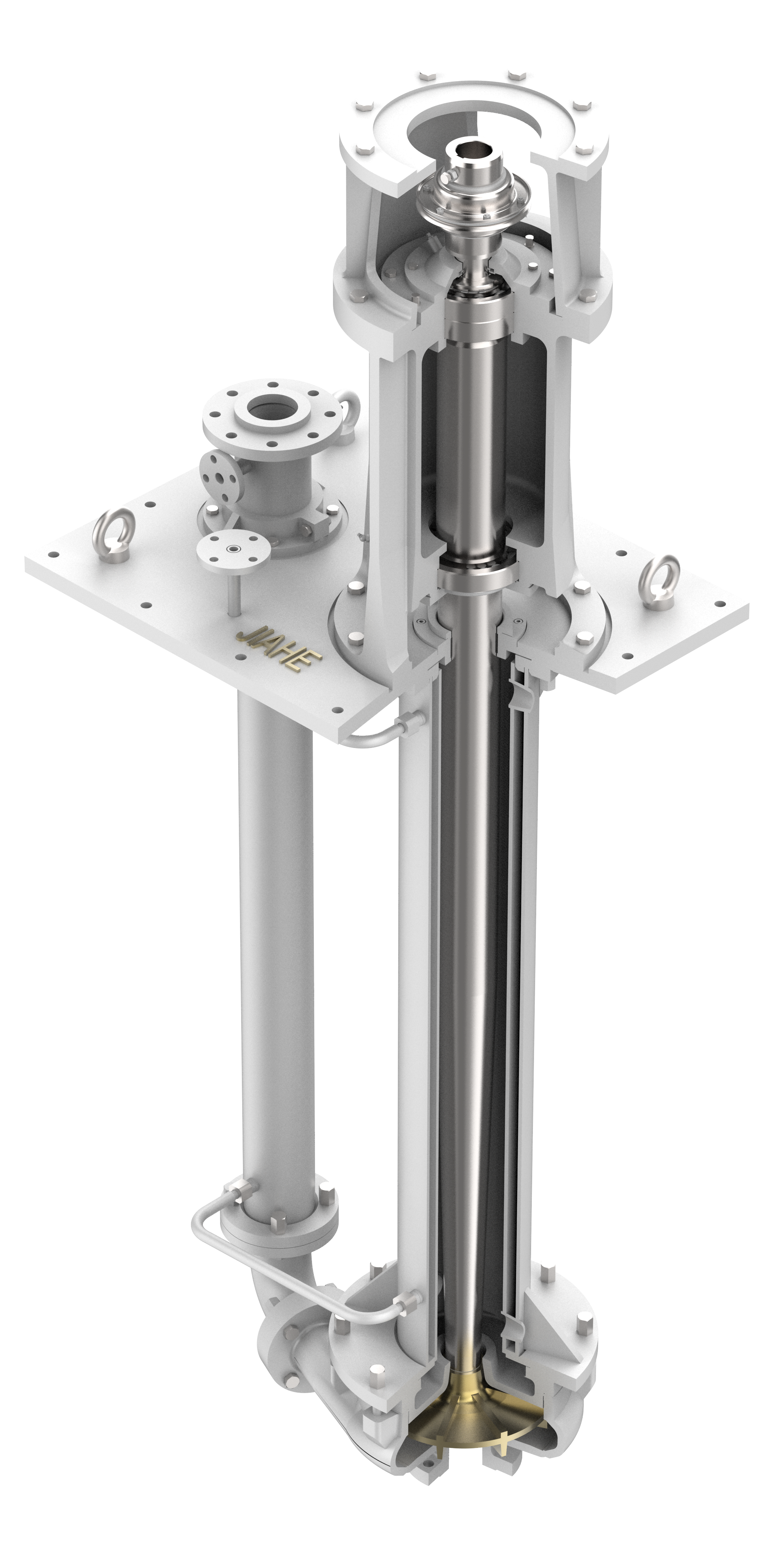

JHXL serie is single-stage, single-suction submerged centrifugal pump, which conforms to ISO13709/API610 standard. There is no sliding bearing under the liquid, the impeller adopts semi-open design, with strong passing capacity, the liquid contacting receiver parts and liquid discharge pipe parts adopt steam jacket design, and the overflow parts are made of high quality high temperature corrosion resistant materials, with the advantages of stable operation and long life cycle.

Application scope:

Suitable for transferring molten liquid sulfur at 135℃≤T≤145℃, sulfur containing particles and impurities.

Used for liquid crude sulfur, filter tank transfer pump, intermediate tank pump and other stations.
